IEC60529 Figure 5 Handheld Brass Spray Nozzle Tester For IPX3 IPX4 121 Holes

Product Introduction

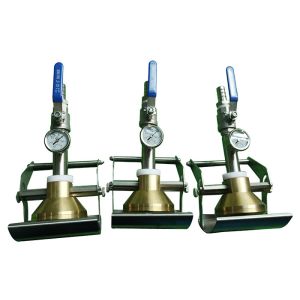

The HT IPX3/4 Spray Nozzle is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate. The pressure can be seen on the gauge which is conveniently positioned by the nozzle. The spray pattern of the nozzle is made to the specifications of IEC 60529. The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test. To make the shell in every possible direction is splashing, this device can be used with a rotating table of the sample.

Technical Parameters

Pressure gauge

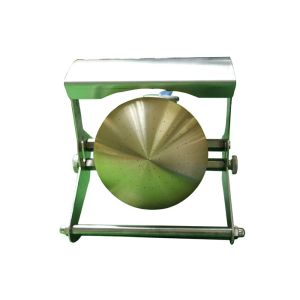

Movable shield with counterweight

Ball valve for water flow regulation

Hose connector

Installation and Commission

Install the water flow meter, hose and watering device as below picture shown, and then open the valve to adjust the water flow to be (10 ± 5%) L / min, and check whether the pressure gauge shows the pressure in the range of 50-150KPa. If the water flow is less than 10 liters, then a booster pump should be installed, please refer to the blow picture.

Waterproof rating for IP3 sample test: According to IEC60529 Figure 5, with flapper test.

Waterproof rating IP4 sample tests: Please remove the flapper to make the sample can be splashed in all directions.

If you don't know how to use it ,please click here user manual HH0803.pdf to get tue user manual .
