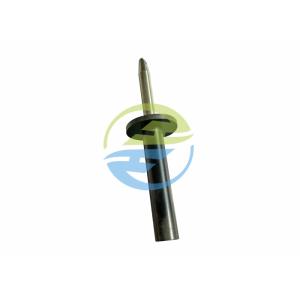

IEC60884-1 Straight Unjointed Test Finger, Diameter 12mm, Protection Against Electric Shock Test

During this additional test the accessories are subjected for 1 min to a force of 75 N, applied through the tip of a straight unjointed test finger, test probe 11 of IEC 61032. This finger with an electrical indicator as described above is applied to all places where yielding of insulating material could impair the safety of the accessory, but is not applied to membranes or the like and is applied to thin-walled knock-outs but with a force of 10 N. Plug Socket Tester
During this test, accessories, with their associated mounting means, shall not deform to such an extent that those dimensions shown in the relevant standard sheets which ensure safety are unduly altered and no live parts shall be accessible.

Plug Socket Tester

Standard:IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065.

Application:It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers. Plug Socket Tester

Test sample:Electrical outlet or similar electrical appliances and other hazardous live parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test).

Plug Socket Tester

Parameters:

Picture for reference:
