The HH0802 oscillating tube tester, which is used to test the IPX3
and IPX4 water protection levels of electronic appliances and other
products. It includes product description, applicable standards,
test samples, features, and technical parameters.
Product Description
This tester is used to detect the IPX3 and IPX4 water resistance of
electronic appliances, lamps, electrical cabinets, electrical
components, automobiles, motorcycles, and other electrical
products.
Applicable Standards
- IEC 60529 IPX3, IPX4
- EN 60529 IPX3, IPX4
- IEC 60884 - 1
- IEC 60598 - 1
- IEC 60335 - 1, etc.
Test Samples
Waterproof electronic appliances, lamps, electrical cabinets,
electrical components, automotive parts (such as automotive
instruments, various switches, micro motors, etc.).
Product Features

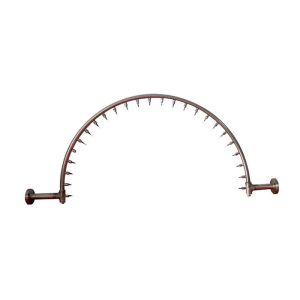

There are two models: open type and chamber type. It uses PLC
control, with a motor driving the oscillating tube for
reciprocating motion, and simultaneously controls the water flow
and the turntable speed to ensure uniform testing of all sides of
the sample.
Technical Parameters
| Parameters | Details |
| Power Supply | Single-phase AC220V 50Hz or customizable |
| Water Supply | Clean water with a flow rate of >10L/min ± 5%, equipped with a
clean water filtration unit |
| Control and Operation | PLC intelligent control, 7-inch color touch screen operation |
| Oscillating Tube Size | Optional sizes of R400, R200, R600, R800, R1000, R1200, R1400,
R1600mm, made of stainless steel |
| Needle Hole | Φ0.4mm |
| Included Angle of Two Holes | 120° for IPX3 and 180° for IPX4 |
| Swing Angle | 120° (±60°) for IPX3 and 350° (±175°) for IPX4 |
| Swing Speed | 4s/time (2×120°) for IPX3 and 12s/time (2×350°) for IPX4 |
| Water Flow | Adjustable from 1 - 10L/min |
| Testing Time | Presettable from 0.01S to 99 hours 59 minutes |

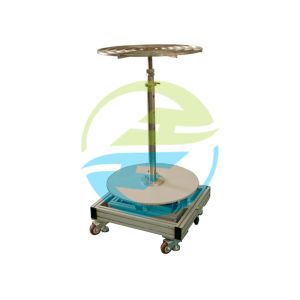

| Rotary Plate | Diameter of Φ600mm, rotation speed of 1r/min, can be paused in four
directions, with a load-bearing capacity of ≤50kg for placing
electrical equipment |
| Pressure Gauge | 0 - 0.25MPa |
| Site Requirements | A dedicated IP waterproof test room with a flat and illuminated
floor, equipped with a 10A waterproof leakage switch (or socket),
good inflow and drainage functions, and requires ground
installation |
| Covered Area | Set according to the selected oscillating tube |
Summary
The HH0802 oscillating tube tester is designed for testing IPX3 and
IPX4 water protection of various products. It complies with
multiple standards. Test samples include waterproof electronics and
automotive parts. It features two models with PLC control for
oscillating tube, water flow, and turntable. Technical parameters
cover power, water supply, control, tube size, angles, speeds,
flow, time, rotary plate, pressure gauge, site requirements, and
covered area.
