IEC60529-2001 Sand And Dust Test Chamber For IPX5 and IPX6 Test

product introduation

The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.

The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IPX5 and IPX6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

The chamber can provide a non-laminar flow of dust-loaded vertically circulating air, can be timed controlled; also be equipped with a vacuum pump which can vacuum the test sample, the exhaust volume and pressure can be adjusted; in addition, the inside chamber is configured with a airflow temperature control device, to ensure that the test is under standard environmental conditions.

The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it is also having large observation window and manual wiper device. The security protection is good.

Parameters:

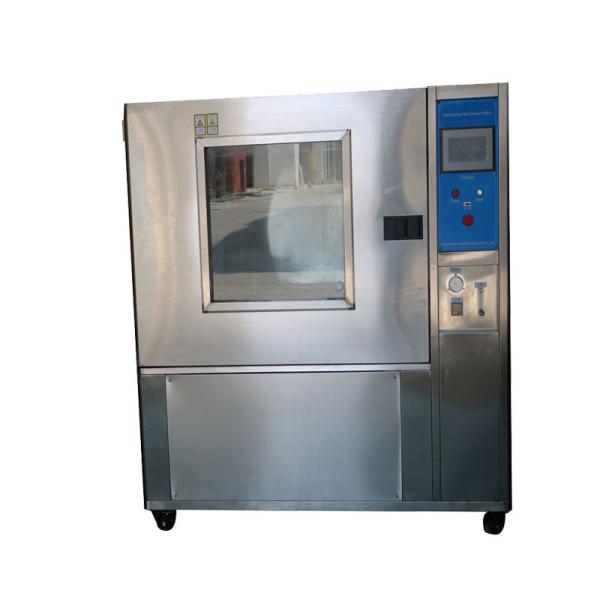

Picture for reference:

Guangzhou HongCe Equipment Co., Ltd (hereinafter referred to as HongCe) is located in Guangzhou, China, since 2003, engaged in developing and providing test equipment and detection system for electronic & electrical products, house appliances and other products. HongCe is professionally dedicated in providing laboratory testing equipment and production line testing system, we are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Our core technologies encompass vacuum, leak testing & automatic control, laboratory test equipment & solution. Our technical leader is an expert in leak detection, his more than 2 decades of experience are a great asset to our firm. Our technical team is comprised of wellexperienced engineers and technicians.

HongCe laboratory testing equipment are designed and manufactured as per the requirements of GB, IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; waterproof and dustproof environmental testing equipment; household appliances testing equipment; wire and cable testing equipment; luminaires test equipment; electric tools test equipment; information technology and audio & video test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

HongCe production line testing equipment are mainly customized according to client's workpieces, such as automatic leak testing system, gas recovery system, other tailor-made system based on vacuum & leak testing technology.
