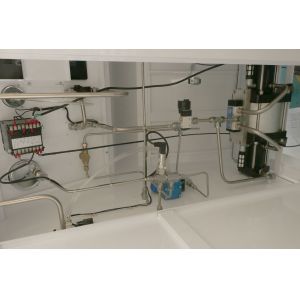

IEC 60335-2-24 Home Appliance Testing Equipment Gas Pressure Test Bench For Compression-type Appliances

Standard: IEC 60335-2-24 Household and similar electrical appliances – Safety – Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makersclause clause 22.7.

Features:

This computer control air seal pressure test device, can complete the low and high pressure testing. Computer smart system detect and acquisition high pressure and low pressure value respectly, and can control the pressure on low pressure end and high pressure end respectly.

1. Core booster equipment adopt smart pressure control system, can adjust and control output pressure freely.
2. Advanced technology, reasonable structure design, with small size, light weight, beautiful appearance features.
3. All pressure parts using international brand standard parts, no welding connection, easy disassembly, high security, long lifespan, easy maintenance.
4. The device is driven by compressed air, use of high-quality high-pressure pump, the low pressure and high pressure detecting can be completed at the same time.
5. Equipped with low pressure compressor and B10 high pressure booster pump, can realize the whole pressure range test and control.
6. Test pressure range 0~3Mpa, select required pressure according to actual test requirement.
7. Computer system can set and control test pressure, real time displaying pressure curve. Can print test report when test completed.
8. When test pressure reached, automatic stop pressurization and entering pressure maintaining and start timing device.
9. Smart pressure control system, can complete the real-time pressure acquisition, and data analysis and recording.
10. Pressure maintaining period, test system automatic timing, alarm when maintaining period complete.
11. Test procedure programmable, reach test pressure automatic stop pressurization.
12. When test completed, can print CN-EN test report, same test data in excel form.

Specifications

Schematic diagram

Guangzhou HongCe Equipment Co., Ltd (hereinafter referred to as HongCe) is located in Guangzhou, China, since 2003, engaged in developing and providing test equipment and detection system for electronic & electrical products, house appliances and other products. HongCe is professionally dedicated in providing laboratory testing equipment and production line testing system, we are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Our core technologies encompass vacuum, leak testing & automatic control, laboratory test equipment & solution. Our technical leader is an expert in leak detection, his more than 2 decades of experience are a great asset to our firm. Our technical team is comprised of wellexperienced engineers and technicians.

HongCe laboratory testing equipment are designed and manufactured as per the requirements of GB, IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; waterproof and dustproof environmental testing equipment; household appliances testing equipment; wire and cable testing equipment; luminaires test equipment; electric tools test equipment; information technology and audio & video test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

HongCe production line testing equipment are mainly customized according to client's workpieces, such as automatic leak testing system, gas recovery system, other tailor-made system based on vacuum & leak testing technology.
