IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment

Product information:

The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used To Test Waterproof Performance of the electrical products which second characteristic is numeral 5/6.

This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device.

Technical parameters:

Specifications for sample turntable:

1. Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 600-900mm.
2. Maximum load: 50KG.
3. Turntable rotation speed: 1-5 r / min adjustable.
4. Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
5. Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
6. Turntable can rotate clockwise or counterclockwise
7. There are four activities with brake casters beneath the turntable, easy for moving and stationary

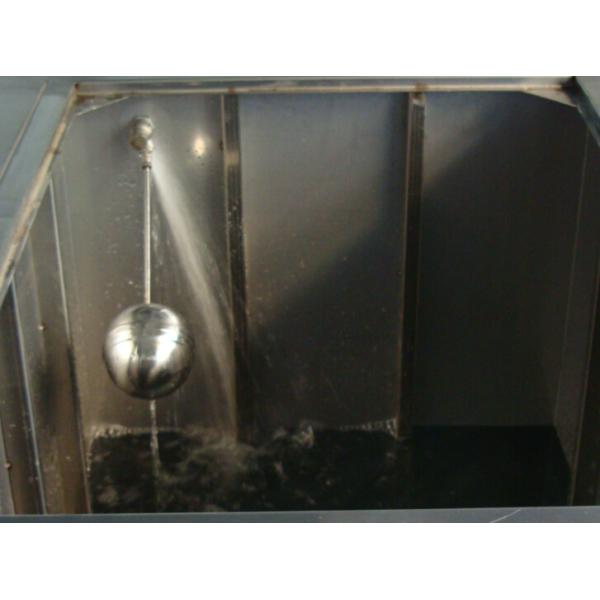

Picture view:

Guangzhou HongCe Equipment Co., Ltd (hereinafter referred to as HongCe) is located in Guangzhou, China, since 2003, engaged in developing and providing test equipment and detection system for electronic & electrical products, house appliances and other products. HongCe is professionally dedicated in providing laboratory testing equipment and production line testing system, we are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Our core technologies encompass vacuum, leak testing & automatic control, laboratory test equipment & solution. Our technical leader is an expert in leak detection, his more than 2 decades of experience are a great asset to our firm. Our technical team is comprised of wellexperienced engineers and technicians.

HongCe laboratory testing equipment are designed and manufactured as per the requirements of GB, IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; waterproof and dustproof environmental testing equipment; household appliances testing equipment; wire and cable testing equipment; luminaires test equipment; electric tools test equipment; information technology and audio & video test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

HongCe production line testing equipment are mainly customized according to client's workpieces, such as automatic leak testing system, gas recovery system, other tailor-made system based on vacuum & leak testing technology.
